CYA5系列液壓彈簧操動機構
CYA5 Series Hydraulic Spring Operating Mechanism
1產品概述ProductOverview
CYA5系列液壓彈簧操動機構采用模塊化結構設計，包括充壓模塊、儲能模塊、工作模塊、控制模塊、監測模塊、適配模塊，用于操作252kV（3P1T）、252～363kV瓷柱式、罐式高壓六氟化硫斷路器。
CYA5 series hydraulic spring operatingmechanism adopts modular design, including pressure charging module, energystorage module, working module, control module, monitoring module and adaptermodule. It is used to operate 252kV （3P1T) and 252~363kV porcelain column type and tank type high-voltageSF6 circuit breakers.
CYA5系列液壓彈簧操動機構具有以下特點：
CYA5 series hydraulic spring operatingmechanism has the following characteristics:
l模塊化設計，結構緊湊，檢修維修方便
Modular design, compact structure, convenient maintenance and repair
l液壓回路集成在各元件中，無外部管路
The hydraulic circuit is integrated into each component withoutexternal pipeline
l內部集成液壓緩沖系統
Internal integrated hydraulic buffer system
l先進的動靜態密封系統
Advanced static and dynamic sealing systems
l機構失壓防慢分保持系統
Mechanism pressure loss prevention and slow opening keeping system
l分合閘速度可調
Adjustable opening/closing speed
l可靠性高
High reliability
2 產品外形及尺寸
Product Appearance and Dimensions

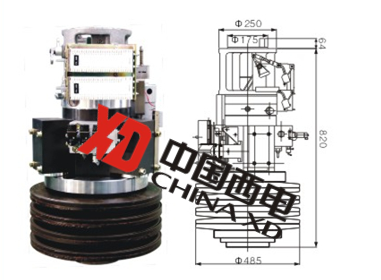

CYA5/CYA5-II液壓彈簧操動機構（機芯）
CYA5/CYA5-II hydraulic spring operating mechanism (core)

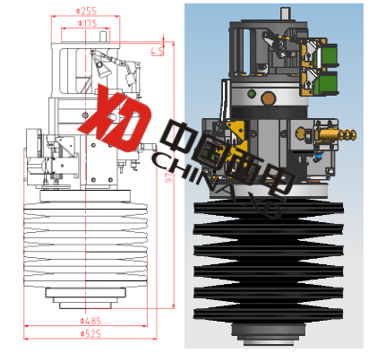

CYA5-4液壓彈簧操動機構（機芯）
CYA5-4 hydraulic spring operating mechanism (core)
3 CYA5/CYA5-II/ CYA5-4液壓彈簧操動機構技術參數
Technical Parameters of CYA5/CYA5-II/CYA5-4 Hydraulic SpringOperating Mechanism
序號 S/N |
項目 Item |
單位 Unit |
CYA5 |
CYA5-II |
CYA5-4 |
1 |
額定電壓 Rated voltage |
電動機Motor |
V |
DC220/AC220/DC110 |
控制回路Control circuit |
V |
DC220/DC110 |
2 |
電動機額定功率Rated power of motor |
W |
470 |
470 |
1000 |
電動機額定電流Rated current of motor |
A |
3/6 |
3/6 |
6/12 |
3 |
行程（活塞桿） Stroke (piston rod) |
mm |
230 |
205 |
230 |
4 |
分閘/合閘閉鎖操作功 Opening/closing lockout operation power |
kJ |
5.9/2.3 |
5.5/2.1 |
8.9/3.1 |
5 |
重量 Weight |
kg |
315 |
310 |
390 |
6 |
儲能時間 Energy storage time |
s |
≤120 |
≤120 |
≤120 |
4重點工程應用
KeyApplication Projects
l新疆五彩灣工程
Xinjiang Multicolored Bay Project
l青海格爾木工程、青海柴達木換流站
Qinghai Golmud Project, Qinghai Qaidam Convertor Station
l埃及哈瓦姆迪亞工程
Egypt Hawamdia Project
l馬來西亞沐若工程
Malaysia Murum Project
l菲律賓國家電網工程
NGCP Project
l三峽長樂海上風電工程
Three Gorges Changle Offshore Wind Power Project
